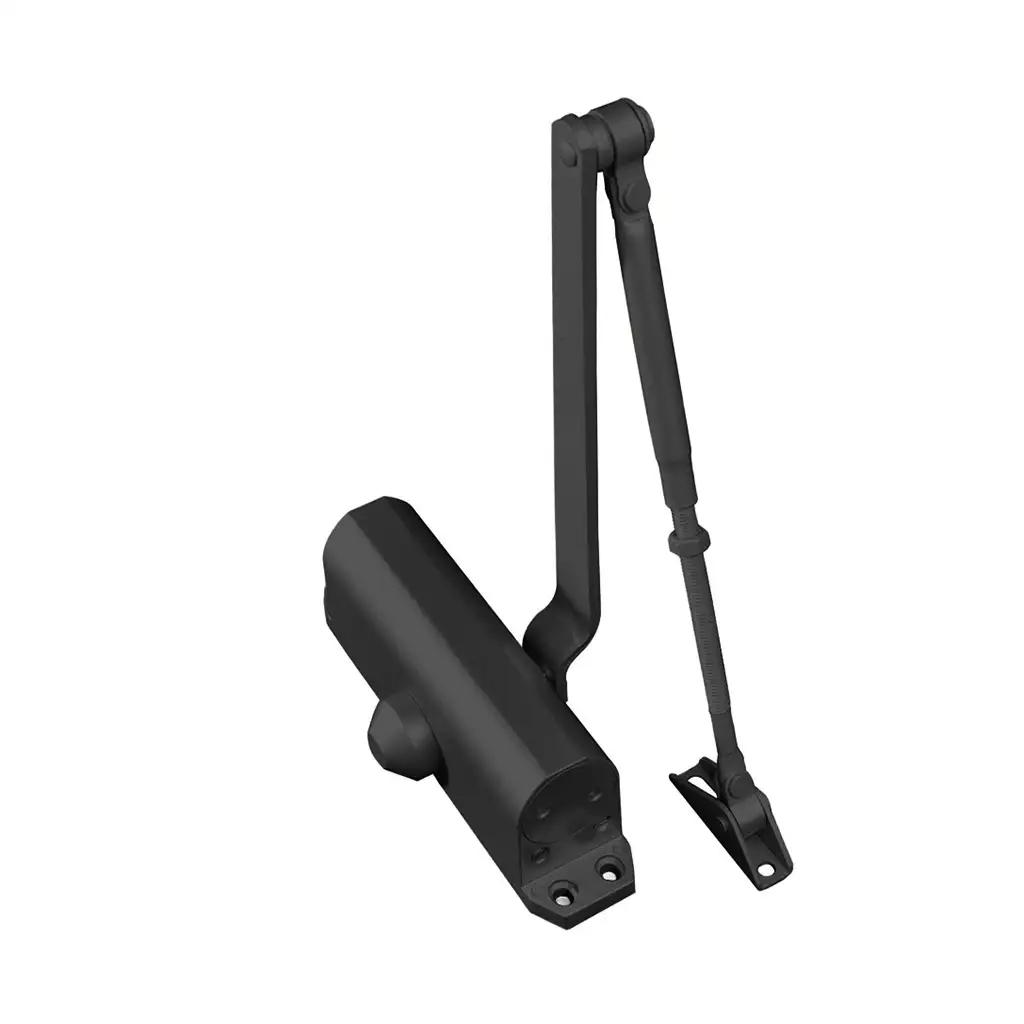

86.400

86.400


  • Maximum door opening angle of 180°
  • Supports door weight upto 80kgs
  • 5 Years guarantee
  • Power Adjustable #2 to #4 by Position
  • EN Fire Tested by Warrington APT Laboratories, UK



Description

Product Description

DATA AND FEATURES

  • Variable closing force
  • Spring strength(EN)    = 2 to 5
  • Guarantee/years    5 years

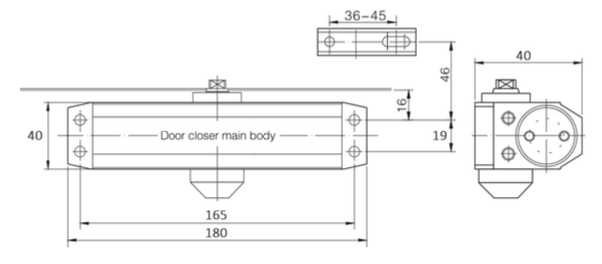

Body dimension (mm)

  • Length 178
  • Height 42
  • Projection 64

Arm

  • Standard
  • Parallel
  • Track (standard)
  • Track (hold-open)

Standard Finishes

  • 002 Silver Sprayed

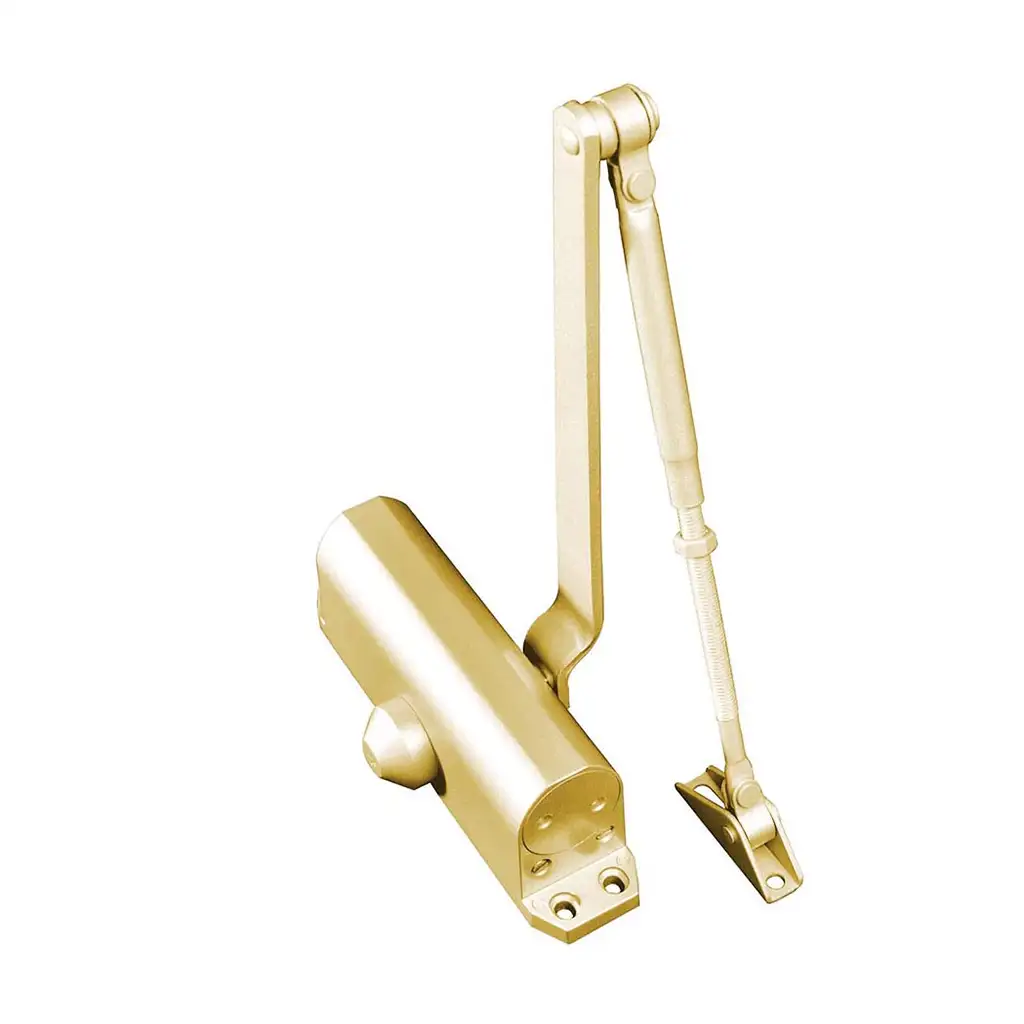

  • 011 Gold Sprayed
  • 017 Dark Brown Sprayed
  • Other finishes upon request

Other Info

  • Rack and pinion
  • Power shoe arm bracket
  • Angle of opening 180º
  • Power adjustable by position
  • Sweep speed adjustable
  • Latching speed adjustable
  • Hold open Built in
  • Hold open arm
  • Delayed action adjustable
  • Back-check Adjustable at value
  • Non-handed
  • With cover

Application

  • Regular(1)
  • Parallel arm (66)
  • Transom (61)

  • Yes
  • No
  • Optional
