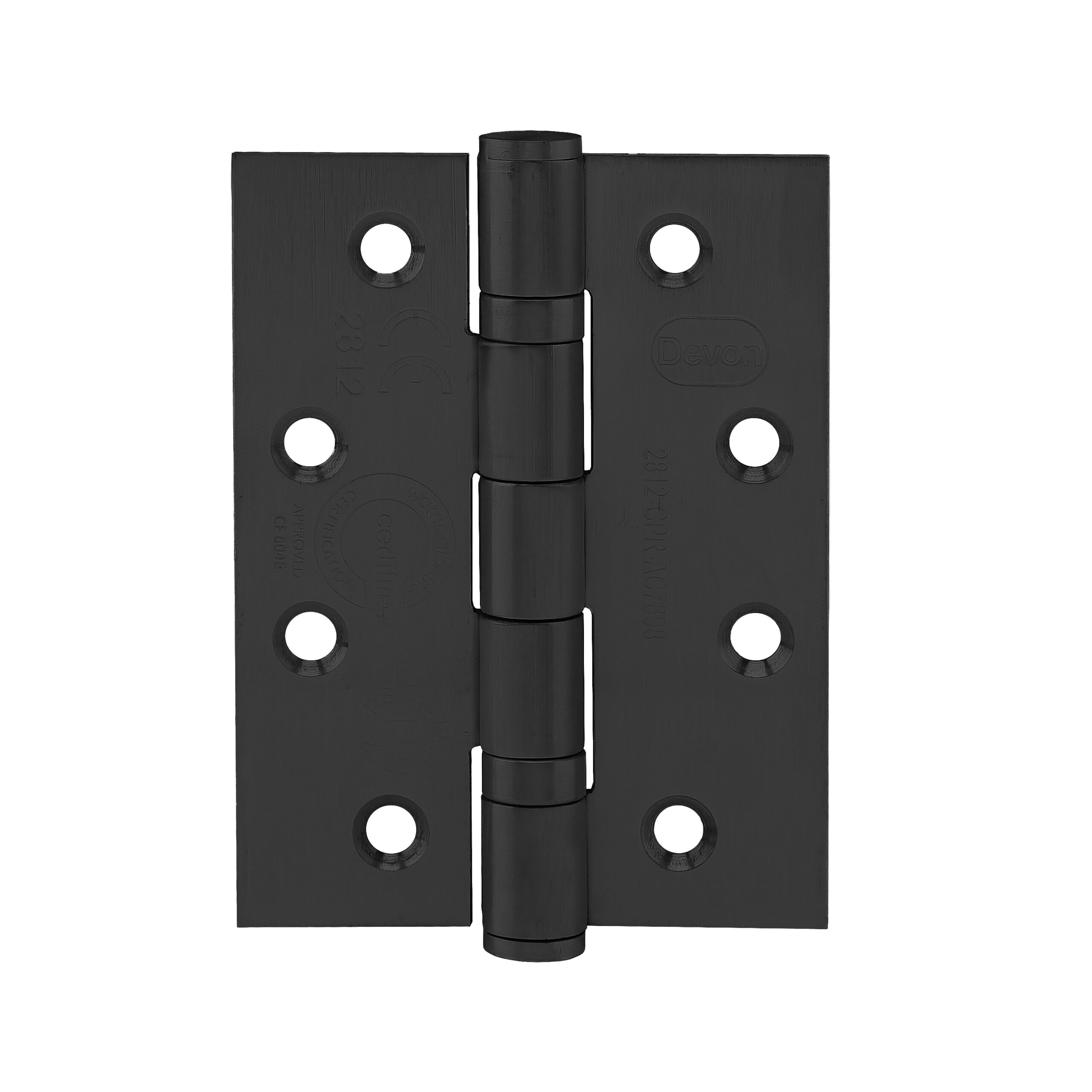

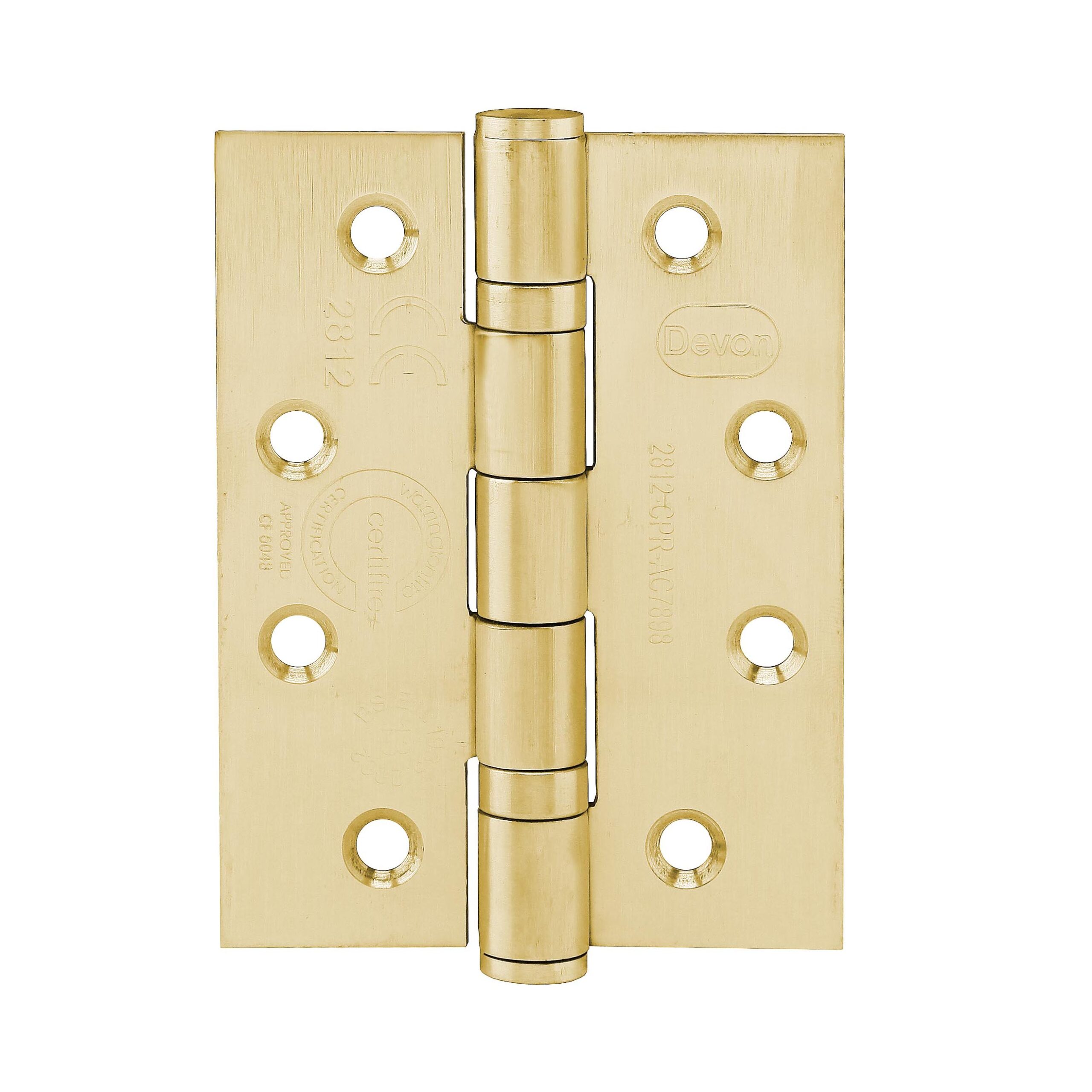

89.355

89.355

89.355

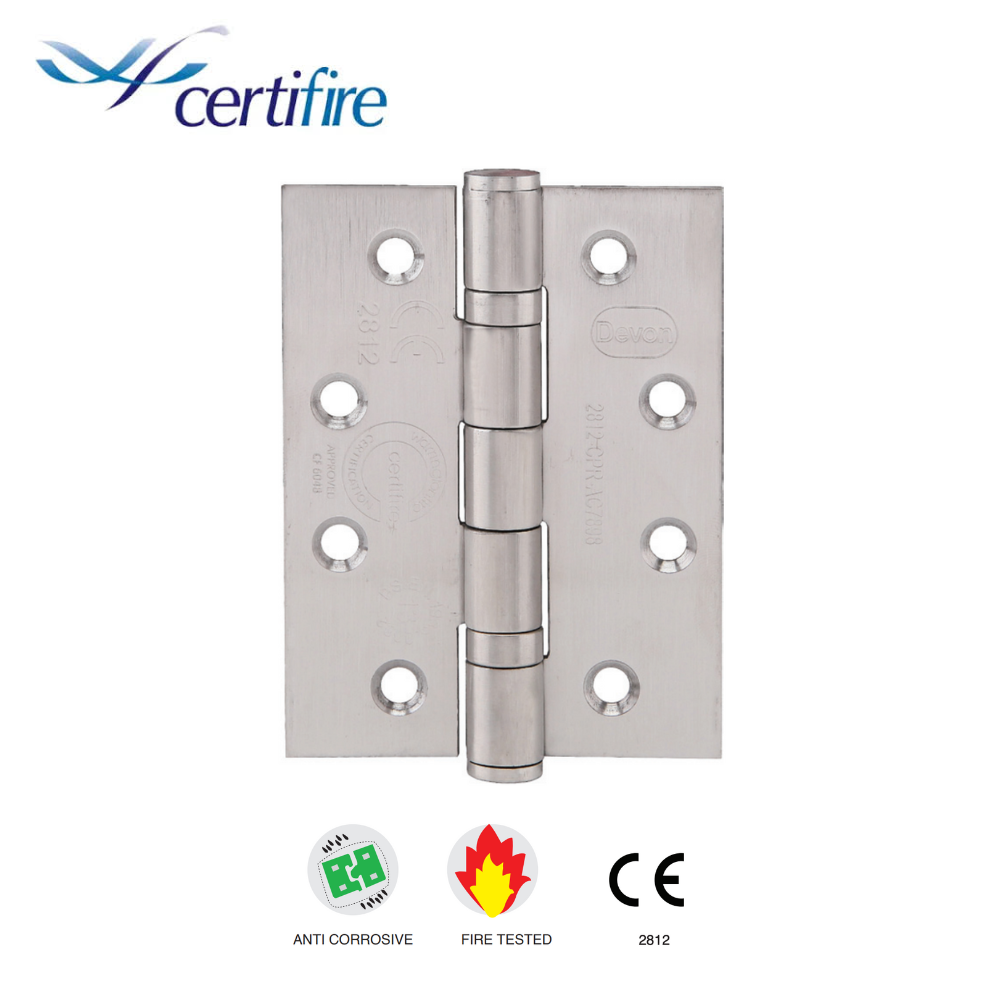

  • High performance hinge with extra deep thrust bearing for high load and long life. Stainless steel fixed pin.
  • Template drilled screw holes.
  • For timber door/metal frame application half wood/half machine screws (size ½ x 12-24) are supplied. Please specify.
  • Certified to EN 1935 Grade 13
  • CE certified.
  • Certifire approved
  • Suitable for fire rated doors.
  • Very high Anti-Corrosive to BS EN Grade 4


Description

Product Description

Code

Length x Width x Thickness MM

Screws per hinge Countersunk Head

Size

Type

Qty.

Effective Door Weight (Kg)

EN1935 Grade

89.355

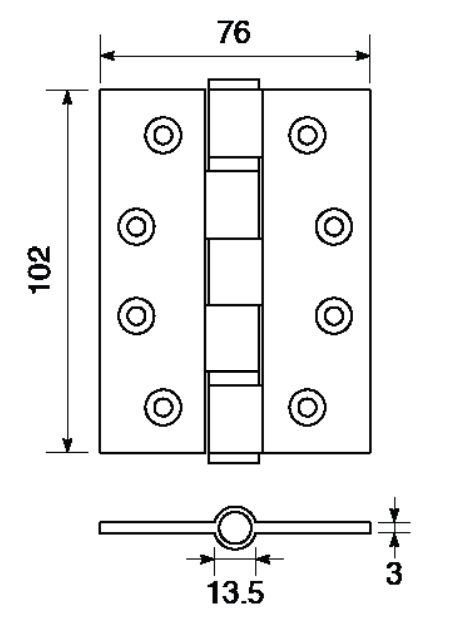

102 x 76 x 3

1¼ x 10

S/S

8

120

13

89.358

114 x 102 x 3.4

1¼ x 10

S/S

8

120

13

89.356

102 x 102 x 3

1¼ x 10

S/S

8

120

13

89.357

102 x 89 x 3

1¼ x 10

S/S

8

120

13

89.359

127 x 76 x 3

1¼ x 10

S/S

8

120

13

89.372

152 x 76 x 3

1¼ x 10

S/S

8

120

13

Standard Finishes:

086 Satin Stainless Steel
087 Polished Stainless Steel

Other finishes available upon request
