89.350

89.350


  • Heavy duty hinge with stainless steel fixed pin, 4 thrust bearing and button tip at both ends.
  • Available with congruent (zig zag) or template drilled screw holes.
  • For timber door/metal frame application half wood/half machine screws (size ½ x 12-24) are supplied. Please specify.
  • Suitable for fire rated doors
  • Available with security dog bolt upon request.



Description

Product Description

Code

Length x Width x Thickness MM

Screws per hinge Countersunk Head

Size

Type

Qty.

Effective Door Weight (Kg)

EN1935 Grade

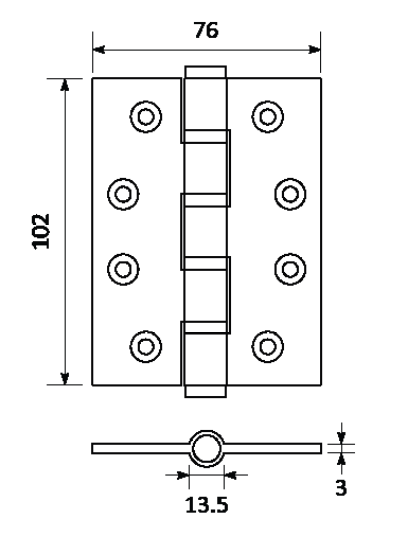

89.350

102 x 76 x 3

1¼ x 10

S/S

8

80

13

89.351

102 x 102 x 3

1¼ x 10

S/S

8

80

13

89.352

114 x 102 x 3.4

1¼ x 12

S/S

8

120

13

89.353

114 x 114 x 3.4

1¼ x 12

S/S

8

120

13

Standard Finishes:

086 Satin Stainless Steel
087 Polished Stainless Steel

Other finishes upon request.
