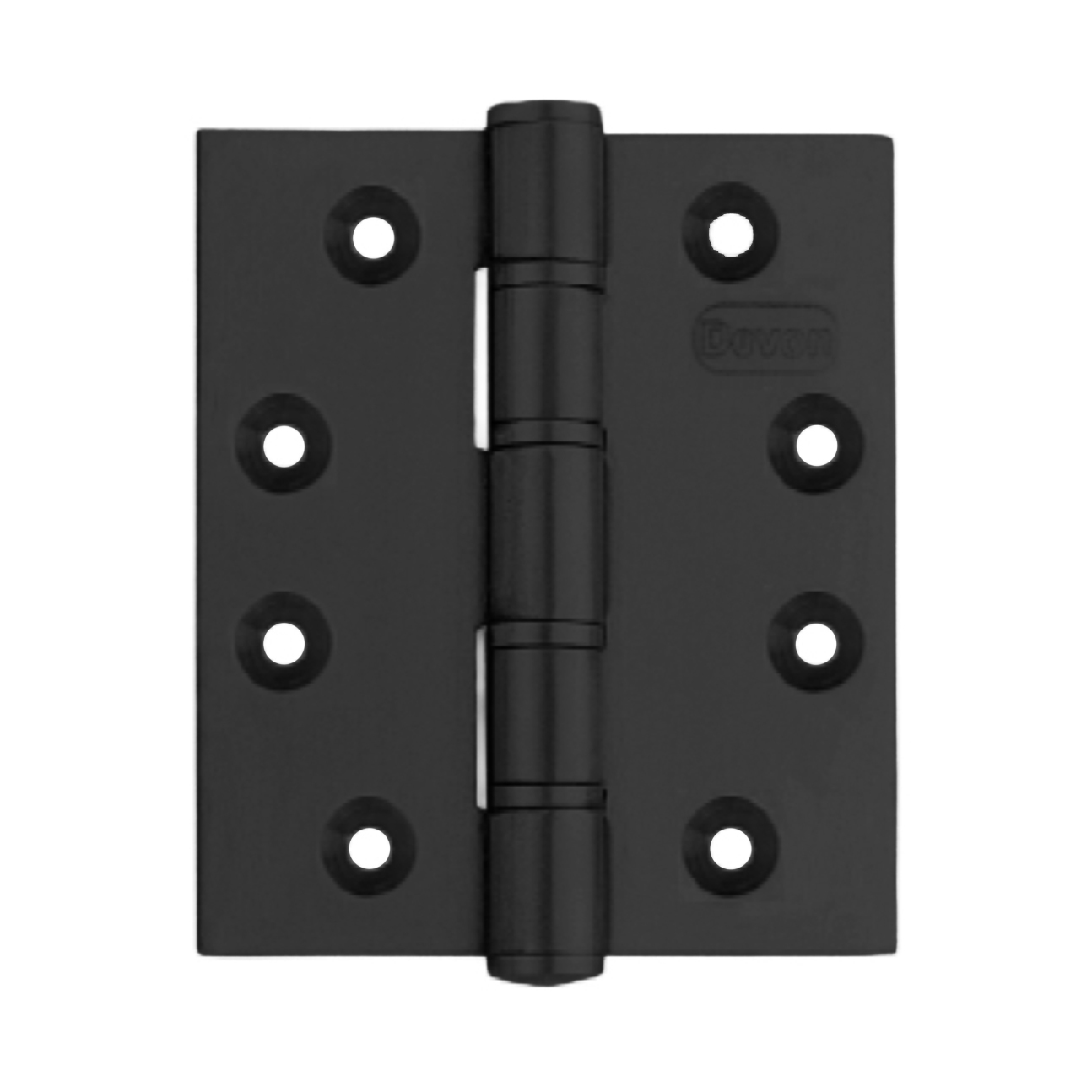

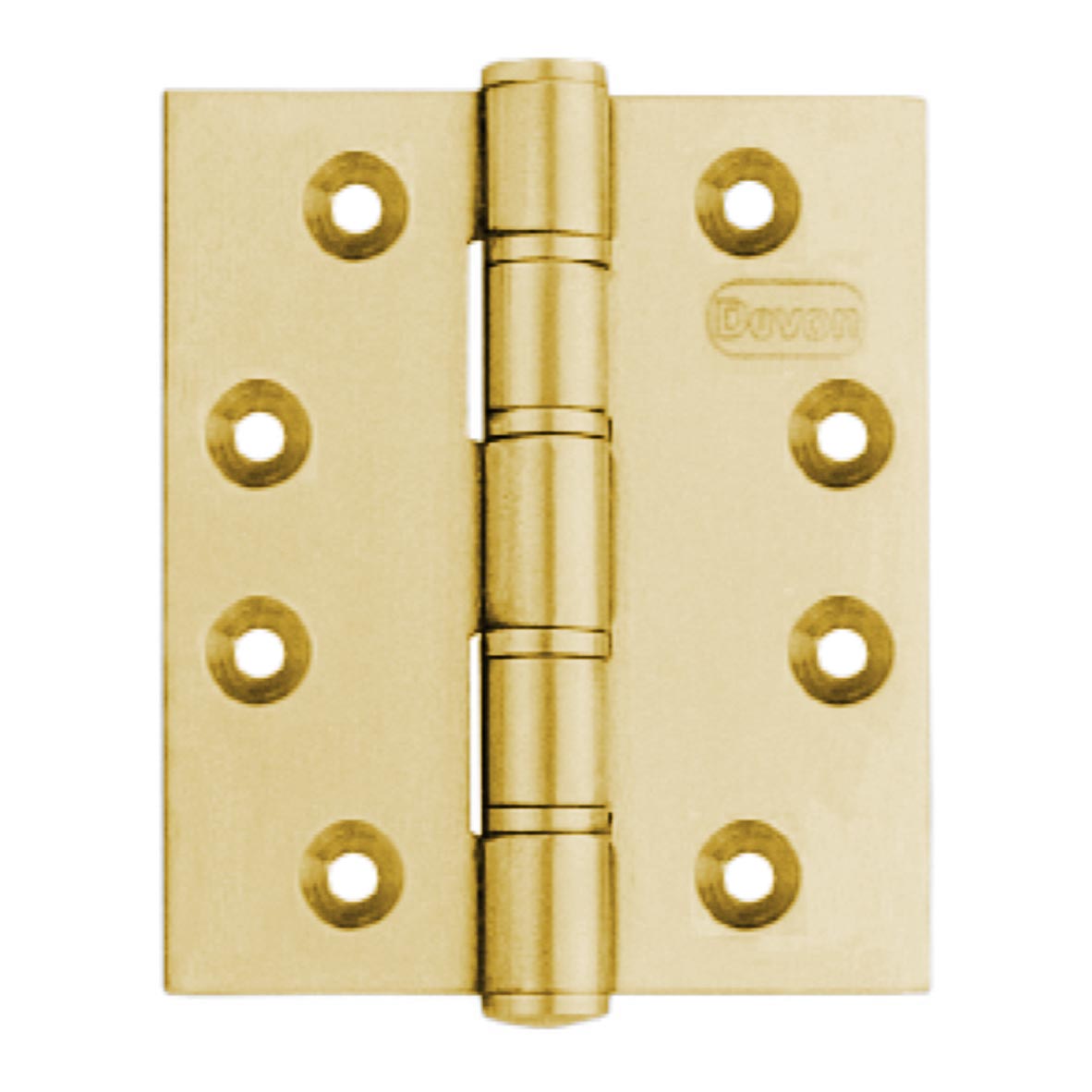

89.342

89.342


  • With stainless steel fixed pin, stainless steel washers and button tip at both ends.
  • Available with congruent (zig zag) or template drilled screw holes.
  • Suitable for fire rated doors, comply with EN1634.
  • For timber door/metal frame application half wood/half machine screws (size ½ x 12-24) are supplied



Description

Product Description

Code

Length x Width x Thickness MM

Screws per hinge Countersunk Head

Size

Type

Qty.

Effective Door Weight (Kg)

EN1935 Grade

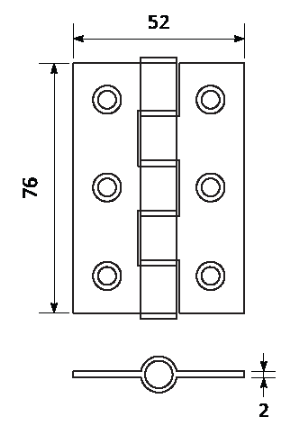

89.342

76 x 52 x 2

1¼ x 6

S/S

8

60

10

89.343

102 x 76 x 2.5

1¼ x 8

S/S

8

60

10

Standard Finishes:

086 Satin Stainless Steel
087 Polished Stainless Steel
Other finishes upon request.
