89.332

89.332

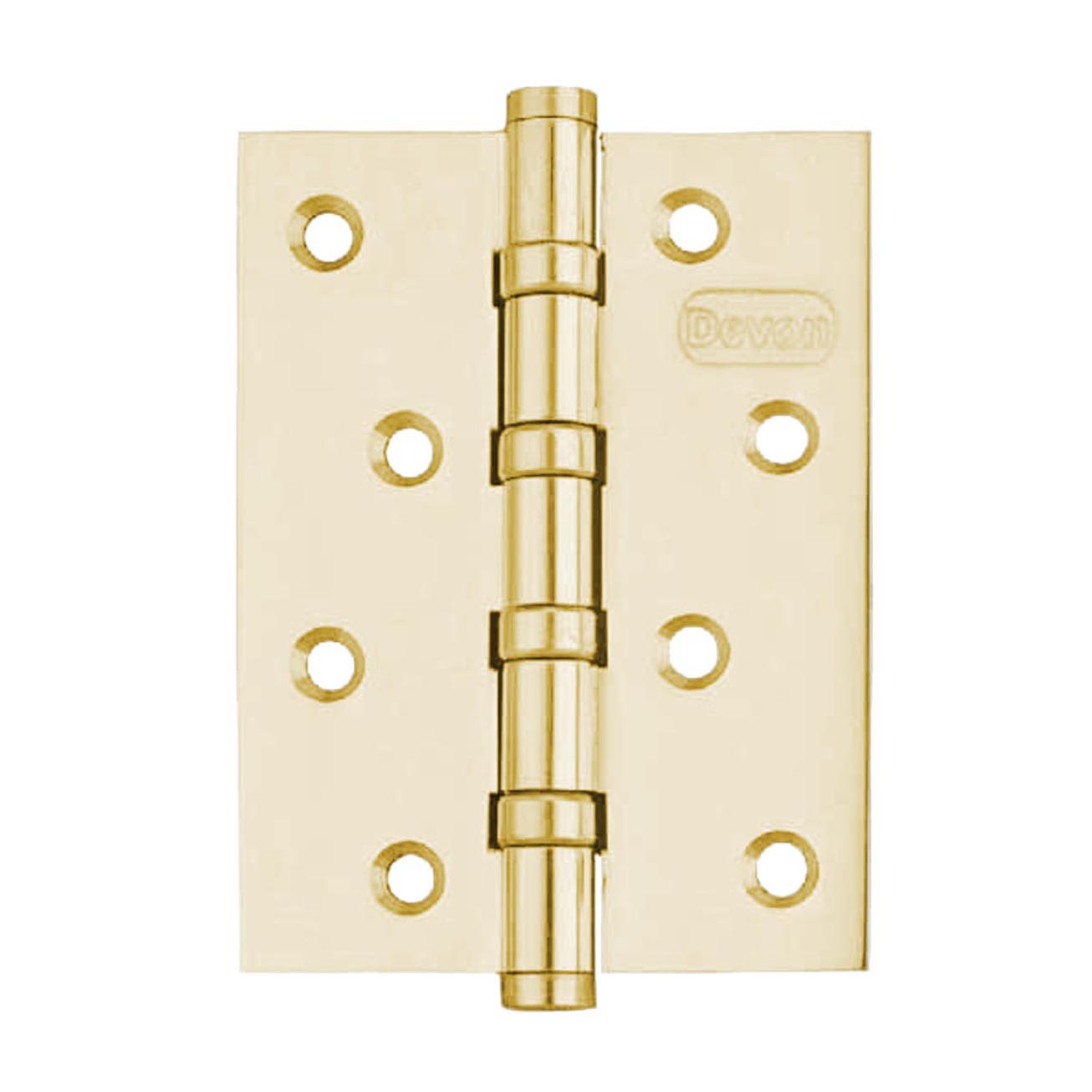

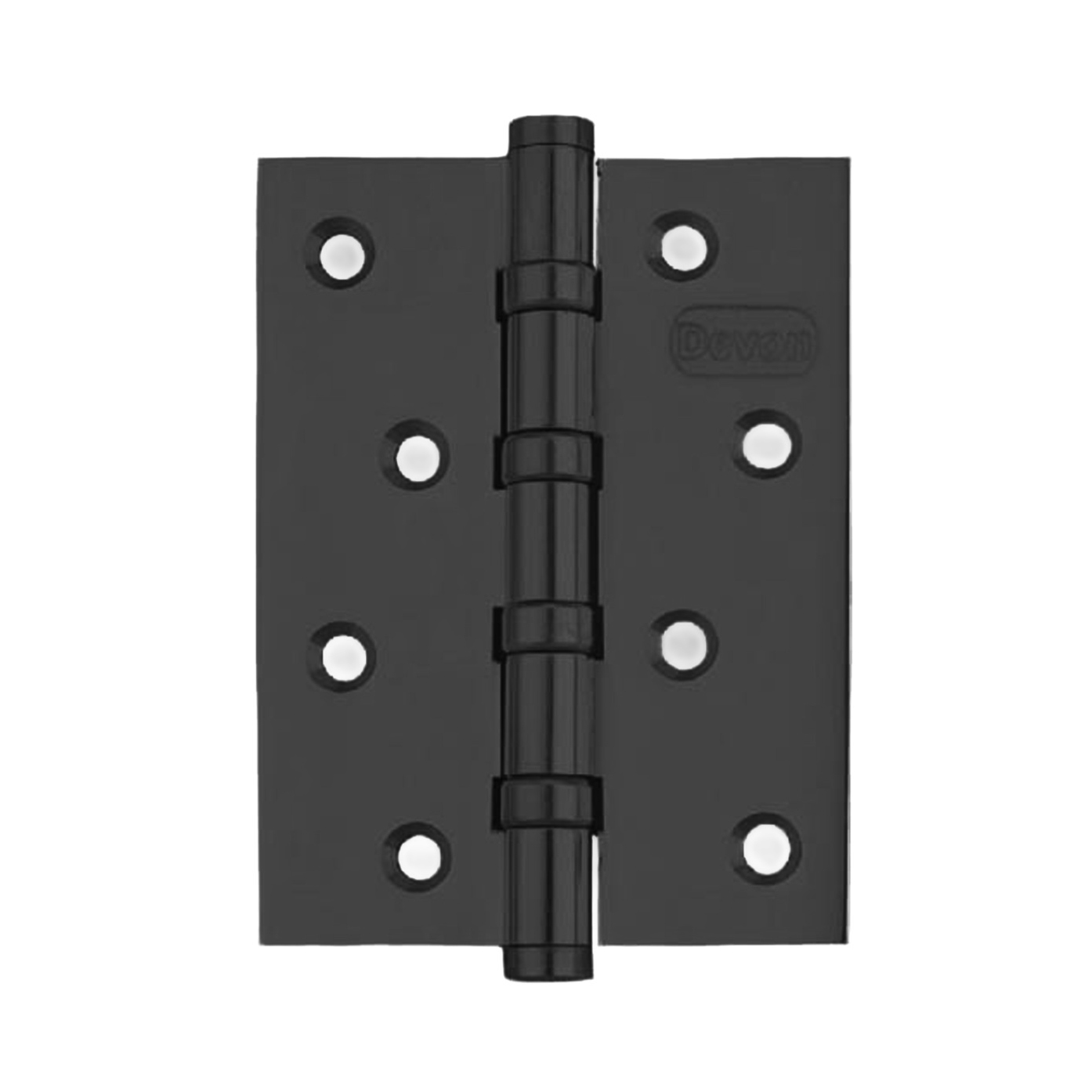

  • Four ball bearing hinge with stainless steel fixed pin, four thrust bearing and button tip at both ends.
  • Available with congruent (zig zag) or template drilled screw holes.



Description

Product Description

Code

Length x Width x Thickness MM

Screws per hinge Countersunk Head

Size

Type

Qty.

Effective Door Weight (Kg)

EN1935 Grade

89.332

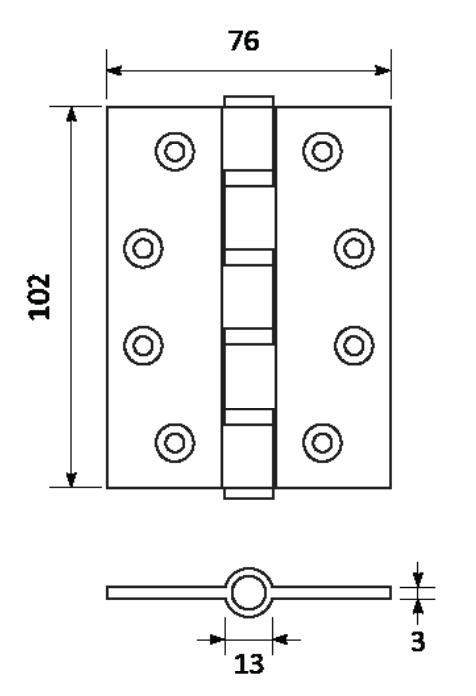

102 x 76 x 3

1¼ x 12

Brass

8

80

12

89.333

127 x 76 x 3

1¼ x 12

Brass

8

80

12

89.334

102 x 102 x 3

1¼ x 12

Brass

8

80

12

89.335

114 x 102 x 3.5

1¼ x 12

Brass

8

80

12

89.336

127 x 102 x 4

1¼ x 14

Brass

10

120

13

89.337

152 x 102 x 4

1¼ x 14

Brass

10

120

13

Standard Finishes:

059 Polished Brass
063 Polished Chrome
078 Antique Brass
Other finishes upon request.
