88.108

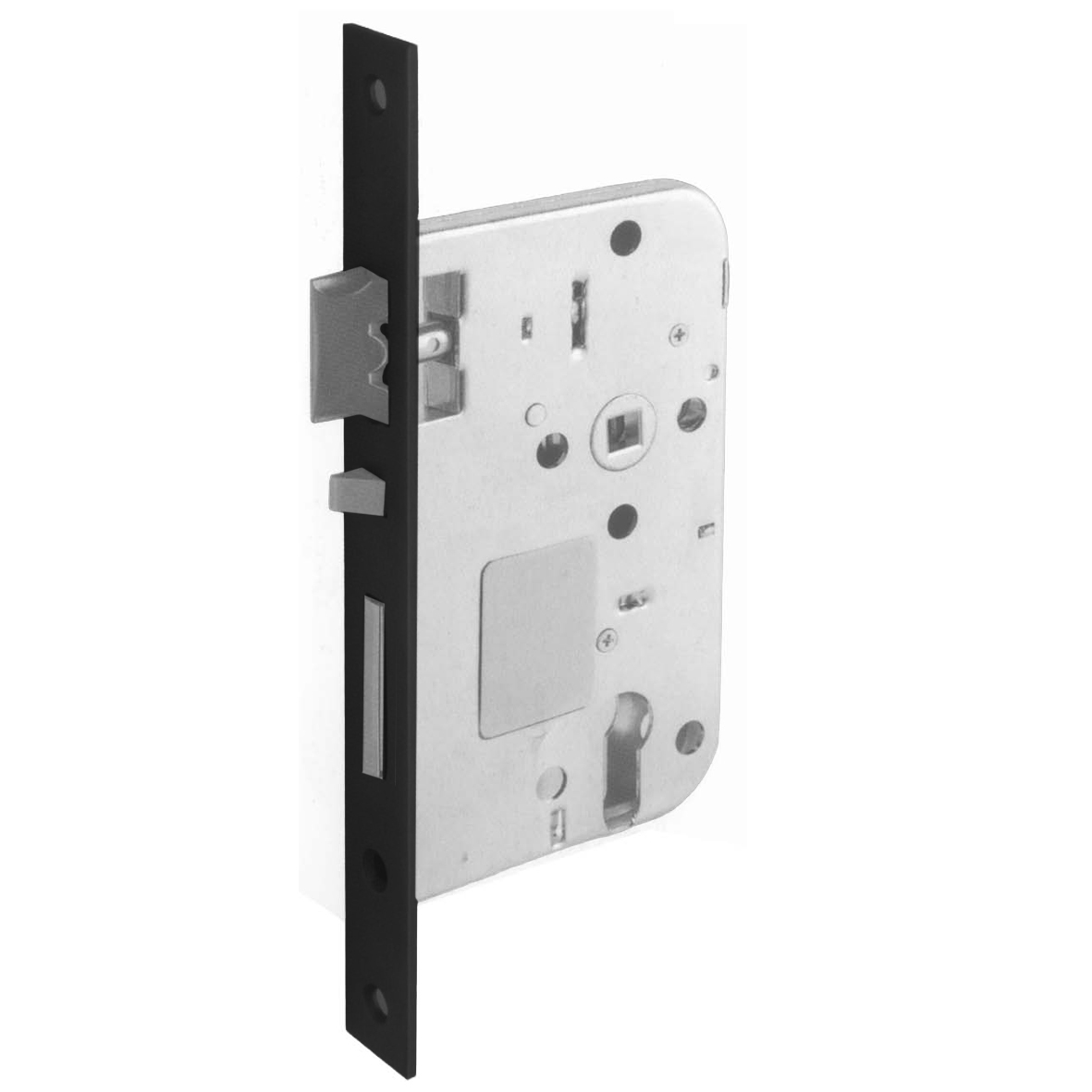

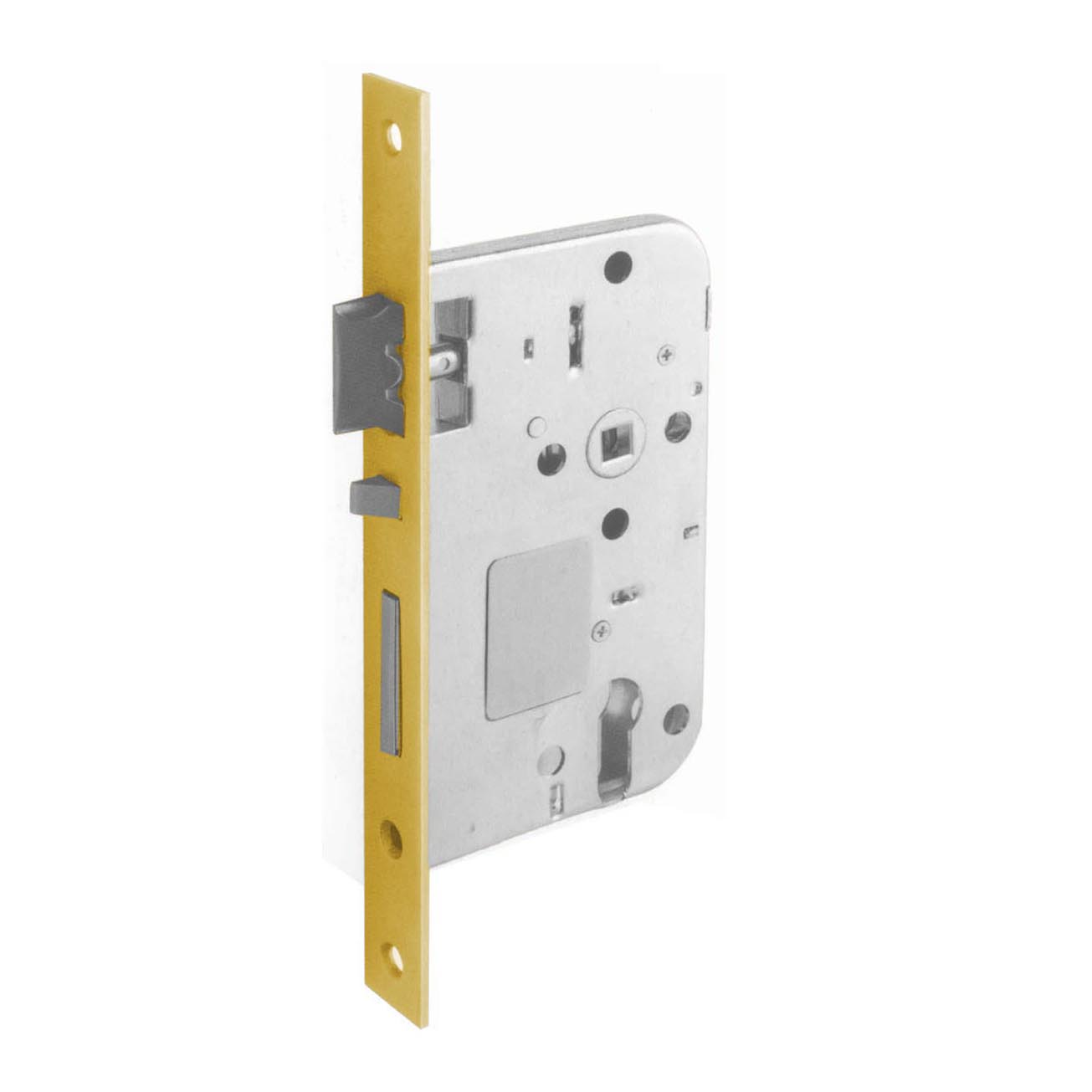

Panic Exit Cylinder Lock with Dead Locking Latch
Outside Function:
Fixed knob or pull, key operate latch and deadbolt
Inside Function:
Lever handle withdraw latch and deadbolt simultaneously.

• Key operate deadbolt.
• Heavily sprung for lever handles
• Dead locking latch bolt with auxiliary pin

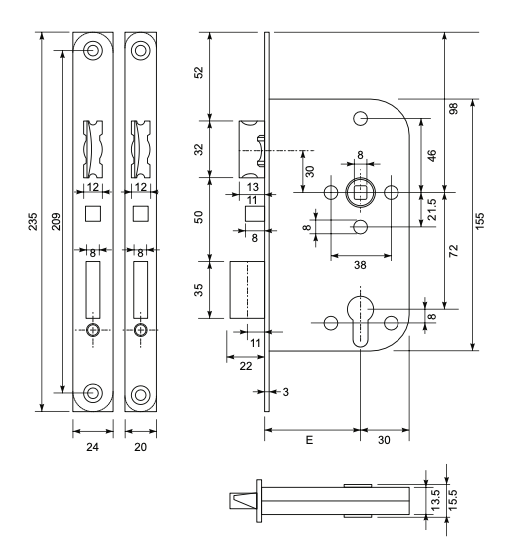

• Center : 72mm
• 60mm backset (other backset available upon request)
• Forend : Round or rectangle, stainless steel
• Bolt through fixing holes at 38mm for the lever rosette and escutcheons
• Certified to EN12209:2003/AC2005
• EN Classification: 3C510F4HC10
