89.380

89.380


  • Heavy duty hinge with stainless steel fixed pin, 2 thrust bearing and button tip at both ends.
  • Wooden and metal doors and frames.
  • Standard : EN 1935:2002
  • Class : 4 7 6 1 1 4 0 13
  • Corrosion resistance Grade 4 : 240 Hrs



Description

Product Description

Code

Length x Width x Thickness MM

Screws per hinge Countersunk Head

Size

Type

Qty.

Effective Door Weight (Kg)

EN1935 Grade

89.380

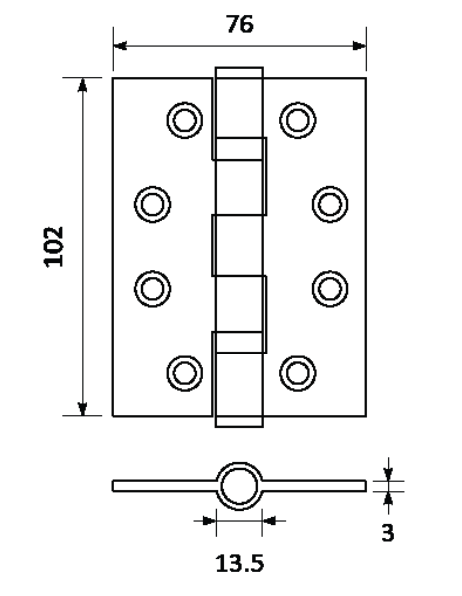

102 x 76 x 3

1¼ x 10

S/S

8

120

13

89.381

102 x 89 x 3

1¼ x 10

S/S

8

120

13

89.382

102 x 102 x 3

1¼ x 10

S/S

8

120

13

Standard Finishes:

086 Satin Stainless Steel
087 Polished Stainless Steel

Other finishes upon request.
