86.221

86.221


  • For closing door from 180° open
  • Durability: 500.000 test cycles
  • Supports door mass between 45 – 80kg
  • Suitable for use on fire/smoke door resisting assemblies
  • High corrosion resistance and provides maximum safety
  • Tested to EN 1154 483113, 484113, 482113 by Warrington APT Laboratories, UK.
  • Power Adjustable #2 to #4 by Position / by Springs EN Fire Tested



Description

Product Description

DATA AND FEATURES

  • Variable closing force
  • Spring strength(EN)    = 2 to 5
  • Guarantee/years    10 years

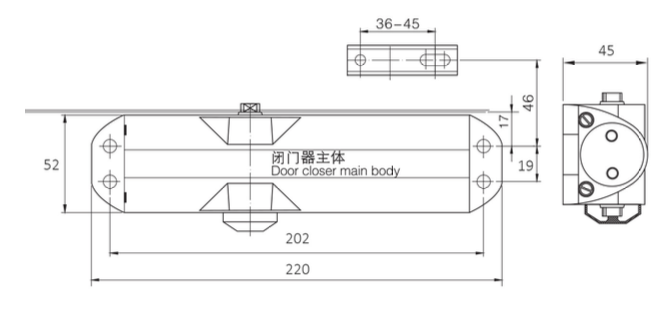

Body dimension (mm)

  • Length 220
  • Width 59
  • Thick 42

Arm

  • Standard
  • Parallel
  • Track (standard)
  • Track (hold-open)

Standard Finishes

  • 002 Silver Sprayed

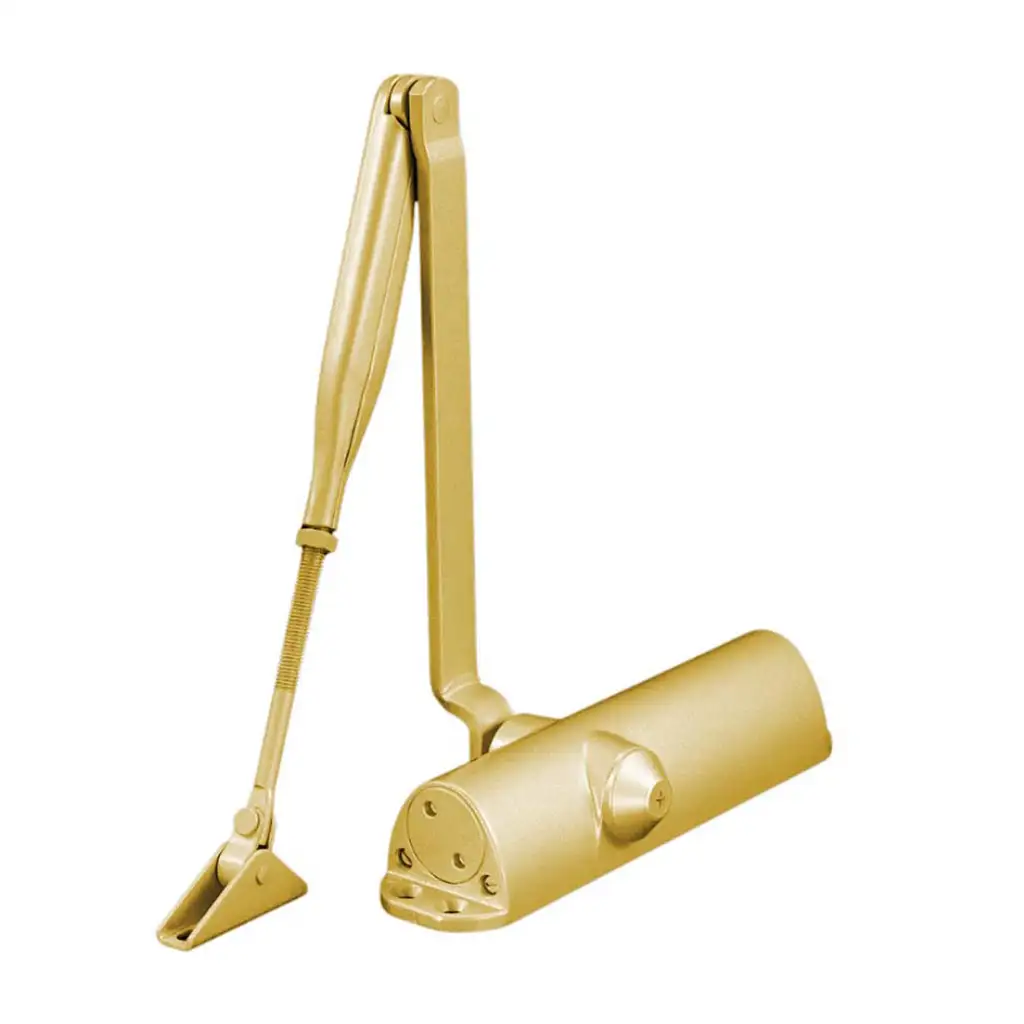

  • 011 Gold Sprayed

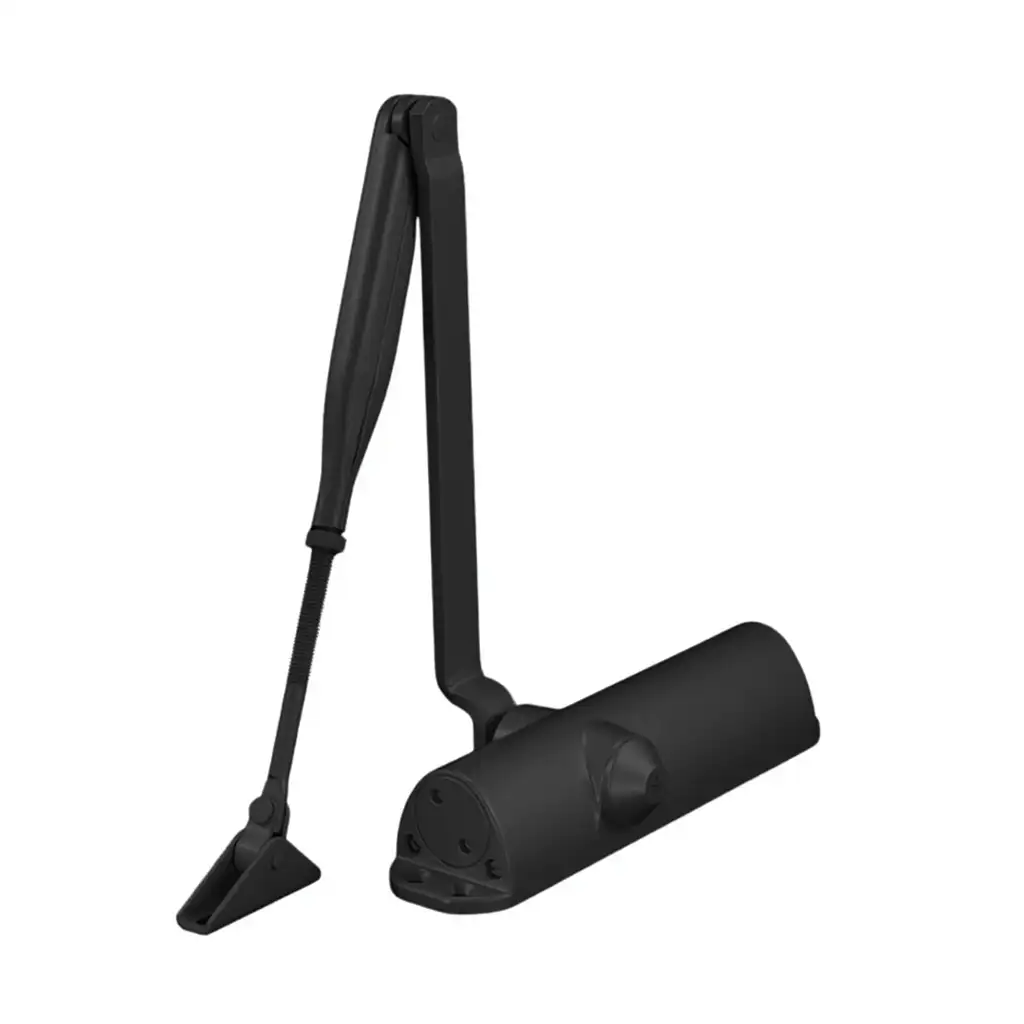

  • 017 Dark Brown Sprayed
  • Other finishes upon request

Other Info

  • Rack and pinion
  • Power shoe arm bracket
  • Angle of opening 180º
  • Power adjustable by spring
  • Sweep speed adjustable
  • Latching speed adjustable
  • Hold open Hold-open arm
  • Delayed action adjustable
  • Non-handed
  • With cover

Application

  • Regular(1)
  • Parallel arm (66)
  • Transom (61)

  • Yes
  • No
  • Optional
