• Variable closing force

• Spring strength(EN)    = 2 to 5

• Guarantee/years    20 years

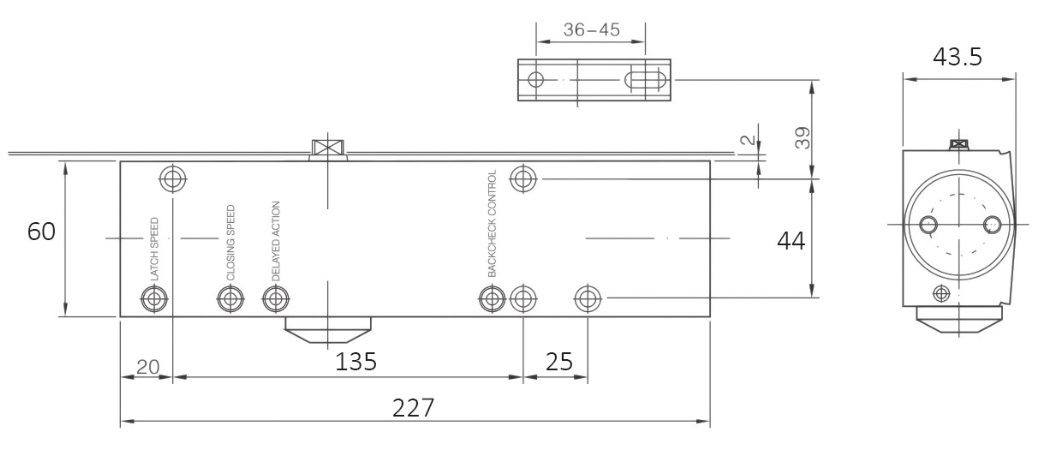

Body dimension

• Length 236

• Width 54

• Thick 38

Arm

• Standard

• Parallel

• Track (standard)

• Track (hold-open)

Application

• Regular(1)

• Parallel arm (66)

• Transom (61)

Other Info

• Rack and pinion

• Power shoe arm bracket

• Angle of opening 180º

• Power adjustable by spring

• Sweep speed adjustable

• Latching speed adjustable

• Hold-open arm

• Back-check Adjustable by Valve

• Delayed action adjustable

• Non-handed

• With cover

Standard Finishes

• 086 Satin Stainless Steel

• 021 Silver Anodized

• 101 PVD

• Other finishes available upon request
